Mini skid steer loader with optional engine: Honda, Briggs & Stratton, Kubota, Perkins (EPA and Euro V standard).

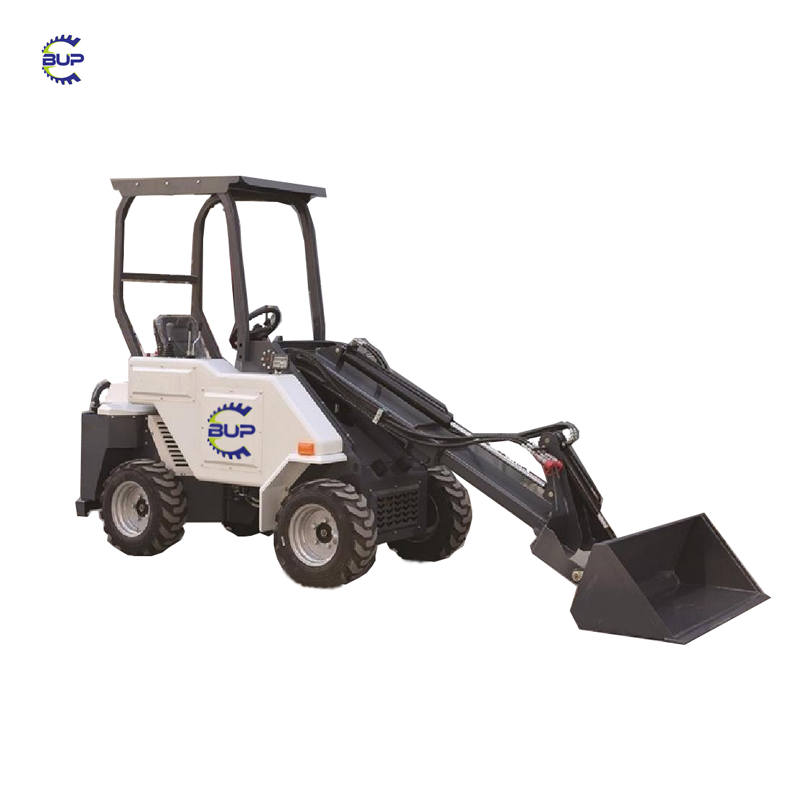

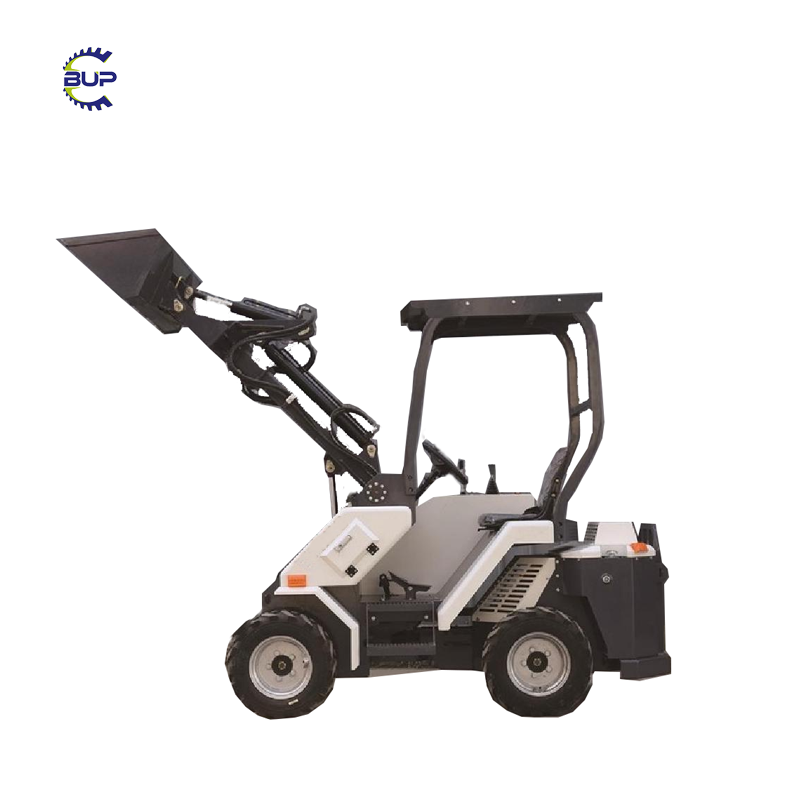

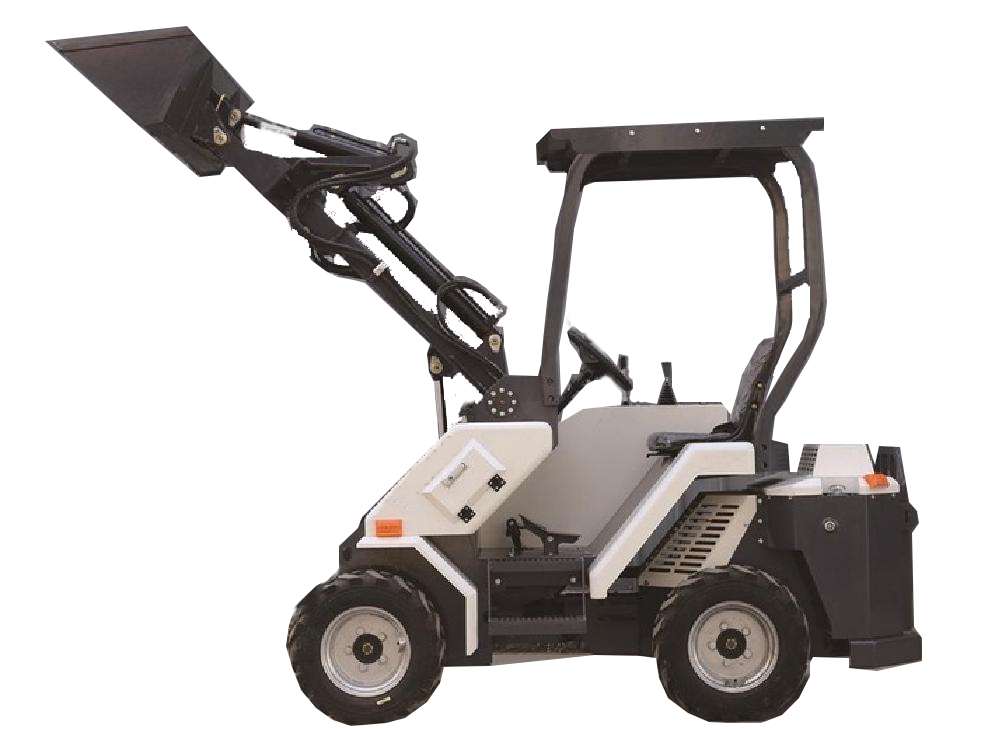

BUP-30 Four wheel drived telescopic arm loader
Product introduction:
- BUP-30 loader has a wide working range: the small boom can be retracted, allowing the loader to perform loading, unloading, and handling operations over longer distances.
- The articulated body design allows for flexible turning in confined spaces, such as working in narrow passages or environments with many obstacles.

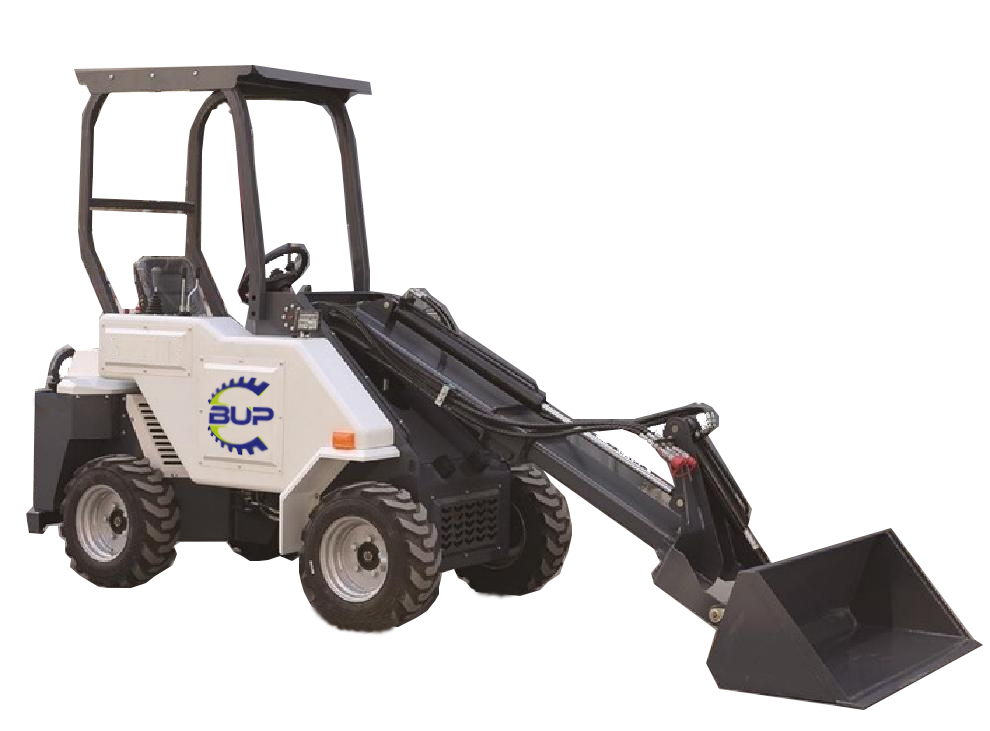

- The telescopic arm design allows the loader to quickly place materials in designated positions during material handling, improving work efficiency.
- Equipped with an advanced hydraulic control system, it can precisely control the movements of the working device, reducing the labor intensity of operators and improving operation accuracy.
- It can be equipped with various attachments, such as forks, grapples, and hydraulic hammers, to meet the needs of more different working conditions.
BUP-30 loader parameter:
Model | BUP-30 | ||
Dimensions | Engine | ||
Max Lifting Height | 3350mm | Brand | Rato 739 |
Max Pin Height | 2680mm | Horsepower/RPM | 26HP/3600rpm |
Main Arm Dumping Height (45°dumping angle) | 2000mm | Fuel Tank Volume | 30L |
Main Arm Dumping Range | 1240mm | Hydraulic Oil Tank Volume | 30L |
Main Arm Max Load Capacity | 800kg | Optional Engines (National II/EPA/Euro V) | |
Small Boom Lifting Height | 2680mm | Rato 739/Koop 292/Briggs & Stratton 3864/Honda GX690/Kubota D1105 | |
Small Boom Tilting Height (45°tilting angle) | 2300mm | Performance Parameters | |
Small Boom Max Load Capacity | 600kg | Load Capacity | 500Kg |
Total Length (bucket on ground,small boom retracted) | 3380mm | Bucket Volume | 0.3m³ |
Small Boom Extension Length | 570mm | Max Speed | 9Km/h |
Overall Width | 1240mm | Equipment Net Weight | 1450KG |
Overall Height | 2250mm | Operating Weight | 2000KG |
Wheelbase | 1360mm | Climbing Ability | 30% |
Min Ground Clearance | 190mm | Tire Model | 23*8.5-12 |
Turning Radius | 2600mm | Drive Type | 4-wheel drive |
Hydraulic System | Steering Type | Hydraulic articulated steering | |
System Pressure | 25MPa | Package | |
Standard Flow | 33L/min | Fumigation-free wooden box packaging | 3100*1350*1770mm |
