Mini skid steer loader with optional engine: Honda, Briggs & Stratton, Kubota, Perkins (EPA and Euro V standard).

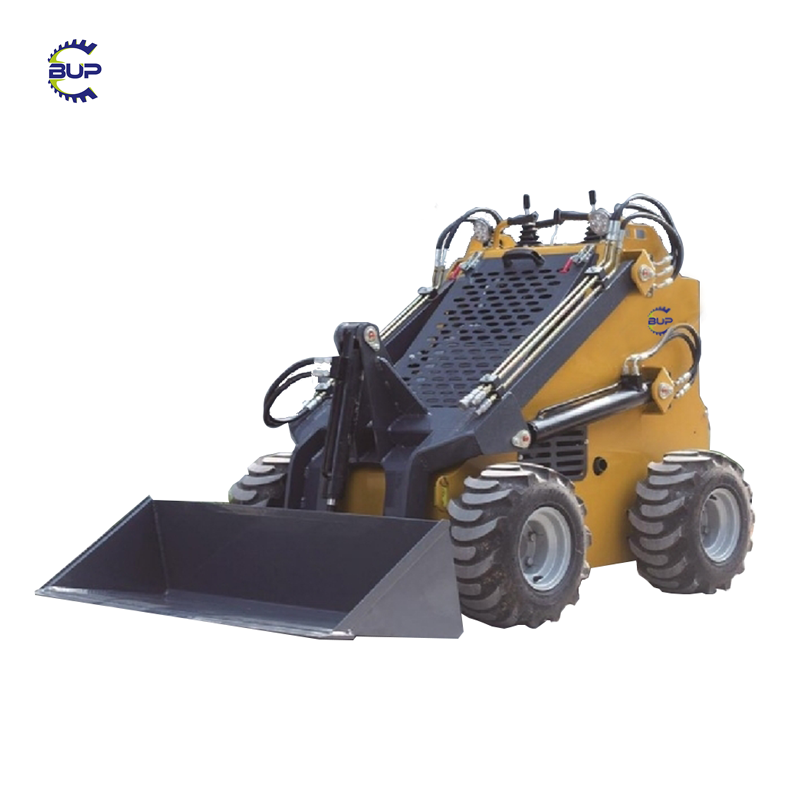

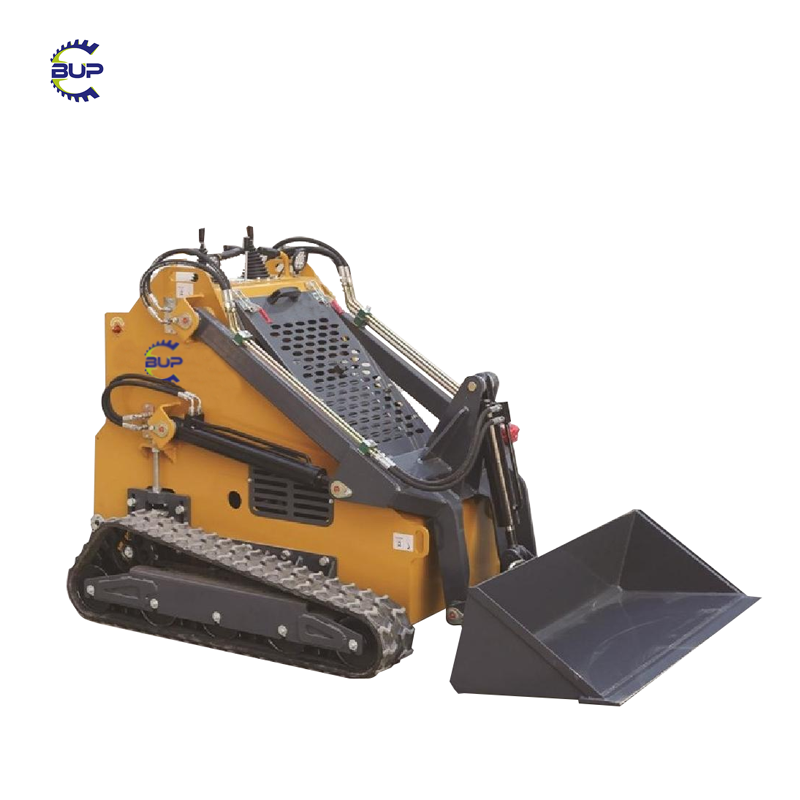

BUP-380 TRACKED & WHEELED MINI SKID STEER LOADER
Product introduction:
- The BUP-380 compact tracked and wheeled skid steer loader can be equipped with engines meeting different emission standards, complying with EPA/Euro V emission standards.
- The machine is compact, suitable for construction operations in confined spaces such as homes, farms, and construction sites, and is easy to learn with joystick operation.
- It can be matched with various auxiliary tools to achieve multi-functional construction, and hydraulic auxiliary tools are equipped with quick-change connectors for more convenient operation.
- The boom is equipped with a quick-connect mounting plate, allowing for rapid switching of various auxiliary tools.
- Thickened hydraulic hoses ensure smooth operation and stable running.
Tracked and wheeled mini skid steer loader parameter:
Model | BUP-380 | ||
Dimensions | Engine | ||
Max Working Height | 2200mm | Brand | RATO739 |
Max Pin Height | 1900mm | Horsepower/RPM | 26HP/3600rpm |
Max Discharge Height | 1560/1800mm | Fuel Tank Volume | 28L |
Max Discharge Distance at Highest Point | 348mm | Hydraulic Oil Tank Volume | 20L |
Bucket Rollback Angle | 55° | Optional Engines (National II/EPA/Euro V) | |
Bucket Discharge Angle | 30° | RATO-739/KOOP-292/Briggs & Stratton 3864/Honda GX690 | |
Bucket Retract Angle | 25° | ||
Departure Angle | 11° | Performance Parameters | |
Overall Height | 1350mm | Max Load Capacity Bucket Volume | 380KG |
Ground Clearance | 100mm | Max Load Capacity Bucket Volume | 0.15m³ |
Wheelbase | 860mm | Max Breakout Force | 550Kg |
Length without Bucket | 1780mm | Speed | 0-5.5Km/h |
Overall Width | 1200mm | Machine Net Weight | Wheeled 820kg/ Tracked 910kg |
Bucket Width | 1190mm | Operating Weight | 1300Kg |
Overall Length (with bucket) | 2500mm | Traction Force | 520KG |
Front Turning Radius | 1307mm | Climbing Angle | 30° |
Hydraulic System | Tires/Tracks | ||
System Pressure | 17MPa | Chevron Engineering Tires | 18*8.5-8 |
Standard Flow | 25L/min | Track Model | 180*60*46 |
Travel Pump Flow | 22L/min | Package | |
Charge Pump Flow | 10L/min | (Fumigation-free wooden boxpackaging) | 2070*1250*1460mm |
Working System Flow | 44L/min | (Steel frame stacked packaging) | 2190*1200*2540mm |
