Mini skid steer loader with optional engine: Honda, Briggs & Stratton, Kubota, Perkins (EPA and Euro V standard).

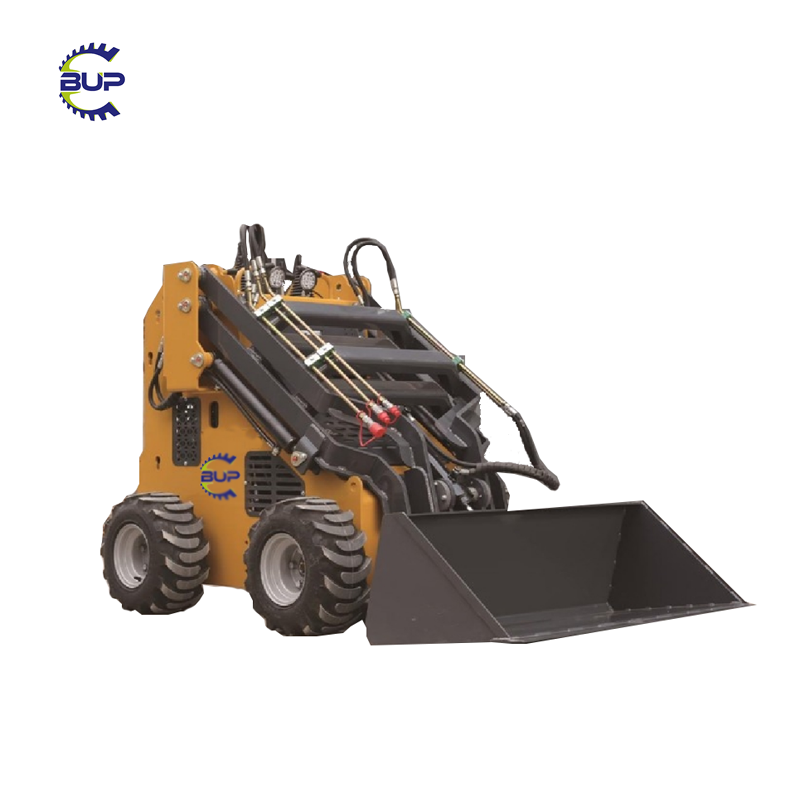

BUP-430 MINI SKID STEER LOADER
The machine introduction
- The BUP-430 Tracked and wheeled mini skid steer loader can be equipped with engines meeting different emission standards, complying with EPA/Euro V emission standards.
- The compact machine body and small turning radius allow it to move freely and operate in narrow spaces, such as indoor construction sites and narrow passages.
- It can be matched with various auxiliary tools to achieve multi-functional construction, and hydraulic auxiliary tools are equipped with quick-change connectors for more convenient operation.
- Dual-layer lift arm and bucket with self-leveling compensation system ensure more stable lifting.
- Good passability: able to adapt to various complex terrains, such as rugged mountain roads and muddy paths.
The machine parameter:
Model | BUP-430 | ||
Dimensions | Engine | ||
Max Working Height | 2300mm | Brand | RATO 739 |
Max Pin Height | 2100mm | Horsepower/RPM | 26HP/3600rpm |
Max Discharge Height | 1450/1900mm | Fuel Tank Volume | 30L |
Max Discharge Distance at Highest Point | 348mm | Hydraulic Oil Tank Volume | 20L |
Bucket Rollback Angle | 55° | Optional Engines (National II/EPA/Euro V) | |
Bucket Discharge Angle | 40° | RATO-739/KOOP-292/Briggs & Stratton 3864/Honda GX690 | |
Departure Angle | 20° | Performance Parameters | |
Overall Height | 1350mm | Max Load Capacity | 430KG |
Ground Clearance | 100mm | Bucket Volume | 0.17m³ |
Wheelbase | 860mm | Max Breakout Force | 550Kg |
Length without Bucket | 2020mm | Speed | 0-7Km/h |
Overall Width | 1200mm | Machine Net Weight | Wheeled 950kg/ Tracked 1030kg |
Bucket Width | 1190mm | Operating Weight | 1430KG |
Overall Length (with bucket) | 2600mm | Climbing Angle | 30° |
Hydraulic System | Tires/TracksTires/Tracks | ||
System Pressure | 25MPa | Chevron Engineering Tires | 18*8.5-8 |
Standard Flow | 33L/min | Track Model | 180/60/46 |
Travel Pump Flow | 75L/min | Package for shipping | |
Charge Pump Flow | 10L/min | Fumigation-free wooden box packaging | 2100*1250*1500mm |
Working System Flow | 44L/min | Steel frame stacked packaging | 2200*1200*2580mm |
