Mini skid steer loader with optional engine: Honda, Briggs&Stratton, Kubota, Perkins (EPA and Euro V standard).

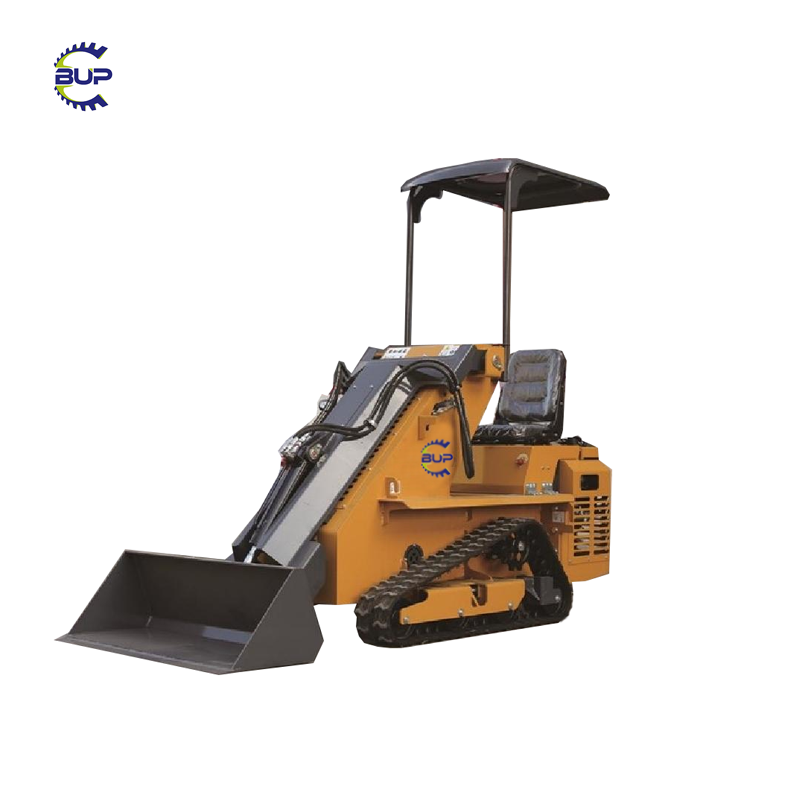

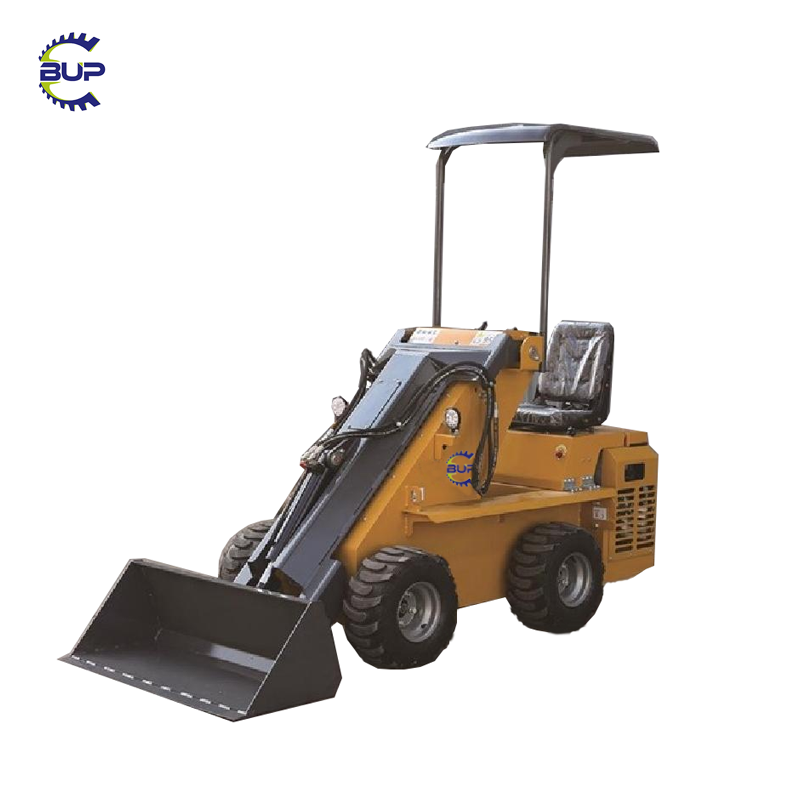

BUP-800 Mini skid steer loader with seat
Skid steer loader with seat introduction
- The BUP-800 Mini skid steer loader updated to a seating and canopy, more friendly to operator, it can be equipped with engines meeting different emission standards, complying with EPA/Euro V emission standards.
- Different work attachments can be changed to achieve multiple operation functions such as shoveling, loading, and unloading, greatly improving equipment utilization and work efficiency.
- The compact body and small turning radius allow for flexible operation in confined spaces, such as indoor construction and narrow street operations, and can easily achieve in-situ turning.
- High and low-speed travel improves work efficiency.
- Thickened hydraulic hoses ensure smooth operation and stable running.
Skid steer loader with seat parameter:
Model | BUP-800 | ||
Dimensions | Engine | ||
Max Working Height | 2600mm | Brand | Briggs & Stratton 25T2 |
Max Pin Height | 2100mm | Horsepower/RPM | 13.5HP/3600rpm |
Max Discharge Height | 1770/2000mm | Fuel Tank Volume | 6.5L |
Max Discharge Distance at Highest Point | 200mm | Hydraulic Oil Tank Volume | 20L |
Bucket Rollback Angle | 55° | Optional Engines (National II/EPA/Euro V) | |
Bucket Discharge Angle | 30° | Briggs & Stratton 25T2/Changchai 192/Koop 192/Rato 4200 | |
Departure Angle | 11° | Performance Parameters | |
Canopy Height | 2100mm | Max Load Capacity | 300KG |
Ground Clearance | 140mm | Bucket Volume | 0.15m³ |
Wheelbase | 950mm | Max Breakout Force | 450Kg |
Total Length without Bucket | 2180mm | Speed | 0-8Km/h |
Total Length with Bucket | 2680mm | Machine Net Weight | Wheeled 780kg/ Tracked 850kg |
Overall Width | 1000mm | Operating Weight | 1100KG |
Bucket Width | 1000mm | Climbing Angle | 30° |
Hydraulic System | Tires/Tracks | ||
System Pressure | 17MPa | Chevron Engineering Tires | 18*8.5-8 |
Standard Flow | 25L/min | Track Model | 180/60/46 |
Travel Pump Flow | 22L/min | Package | |
Charge Pump Flow | 10L/min | Fumigation-free wooden box packaging | 2280*1140*1420mm |
Working System Flow | 44L/min | Steel frame stacked packaging | 2250*1050*2550mm |
