skid steer with cabin

Mini skid steer loader with optional engine: Honda, Briggs & Stratton, Kubota, Perkins (EPA and Euro V standard).

Product introduction

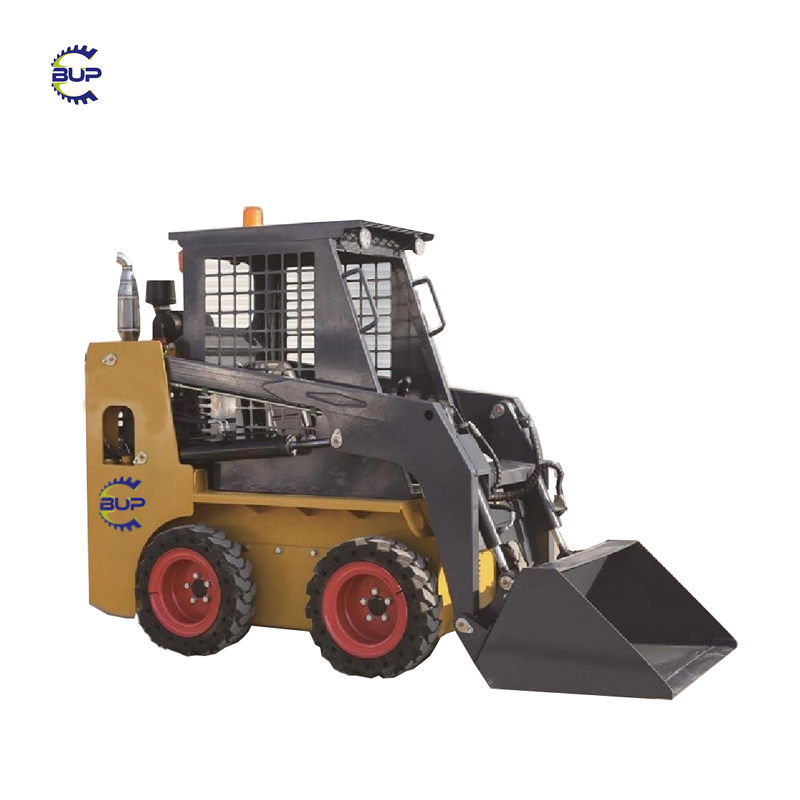

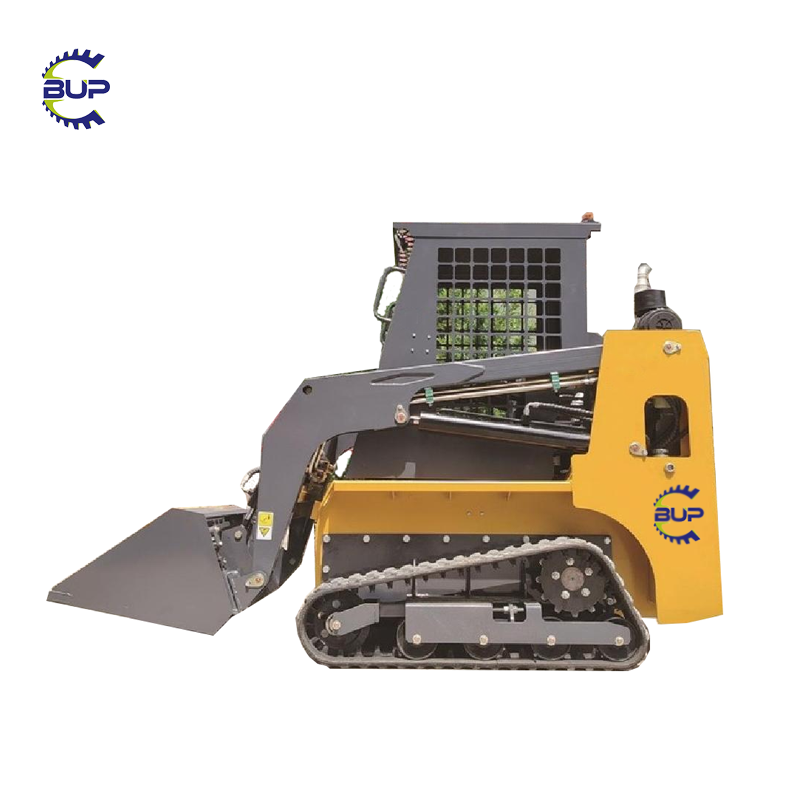

The YH25 skid steer with cabin features a humanized design cabin with a reasonable and easy-to-operate layout.
Different work attachments can be changed to achieve multiple operation functions such as shoveling, loading, unloading, crushing, and excavating, greatly improving equipment utilization and work efficiency.
The compact body and small turning radius allow for flexible operation in confined spaces, such as indoor construction and narrow street operations, and can easily achieve in-situ turning.
Equipped with an advanced hydraulic control system, it can precisely control the movements of the working device, reducing the labor intensity of operators and improving operation accuracy.
Thickened hydraulic hoses ensure smooth operation and stable running.

Skid steer with cabin parameter:

Model	BUP-25
Dimensions		Engine
Max Working Height	3200mm	Brand	Kubota D1105
Max Pin Height	2400mm	Horsepower/RPM	25HP/3000rpm
Max Discharge Height	1890mm	Fuel Tank Volume	25L
Max Discharge Distance at Highest Point	460mm	Hydraulic Oil Tank Volume	20L
Bucket Reversal Angle on Ground	25°	Optional Engines (EPA/Euro V)
Bucket Reversal Angle at Max Height	98°	Perkins 403J11
Max Height Discharge Angle	38°	Performance Parameters
Cabin Top Height	1950mm	Max Load Capacity	300KG
Ground Clearance	120mm	Bucket Volume	0.25m³
Wheelbase	710mm	Max Breakout Force	750Kg
Length without Bucket	2000mm	Travel Speed	0-9Km/h
Overall Width	1000mm	Front Turning Radius	1550mm
Bucket Width	900mm	Machine Net Weight	Wheeled 1550kg/Tracked 1640kg
Overall Length (with bucket)	2650mm	Operating Weight	2000KG
Hydraulic System		Climbing Angle	30°
System Pressure	25MPa	Tires/Tracks
Standard Flow	33L/min	Chevron Engineering Tires	23*8.5-15
Travel Pump Flow	75L/min	Track Model	180/72v/43
Charge Pump Flow	10L/min	Package
Working System Flow	44L/min	Fumigation-free wooden box packaging	258011502100mm
